OIL COOLERS

OUR PRICE EX VAT £70.98
£85.18 (INC VAT)
50-107-7612

To order a kit with alterations or non-standard applications Please Click Here

Description

Warranty

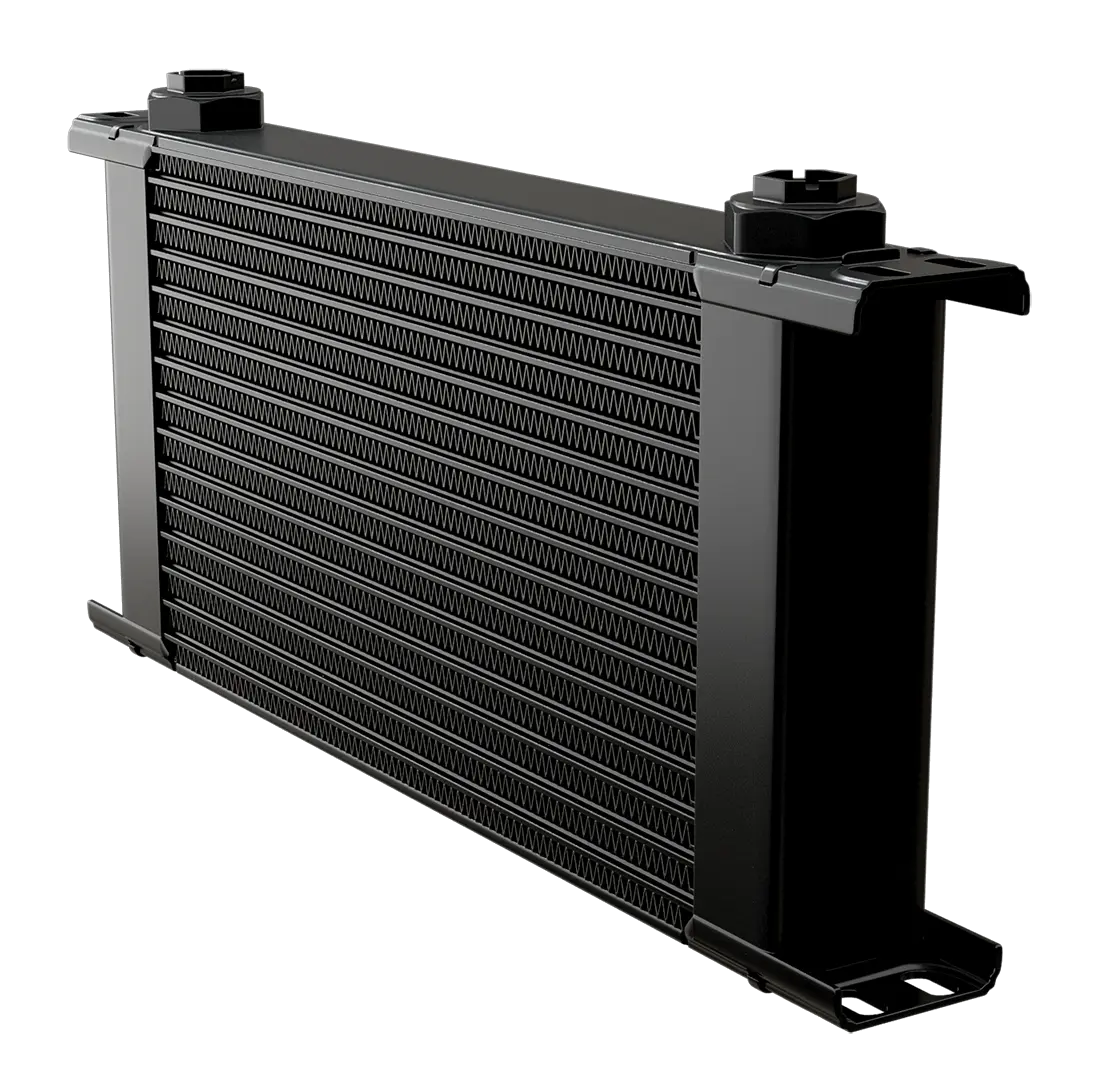

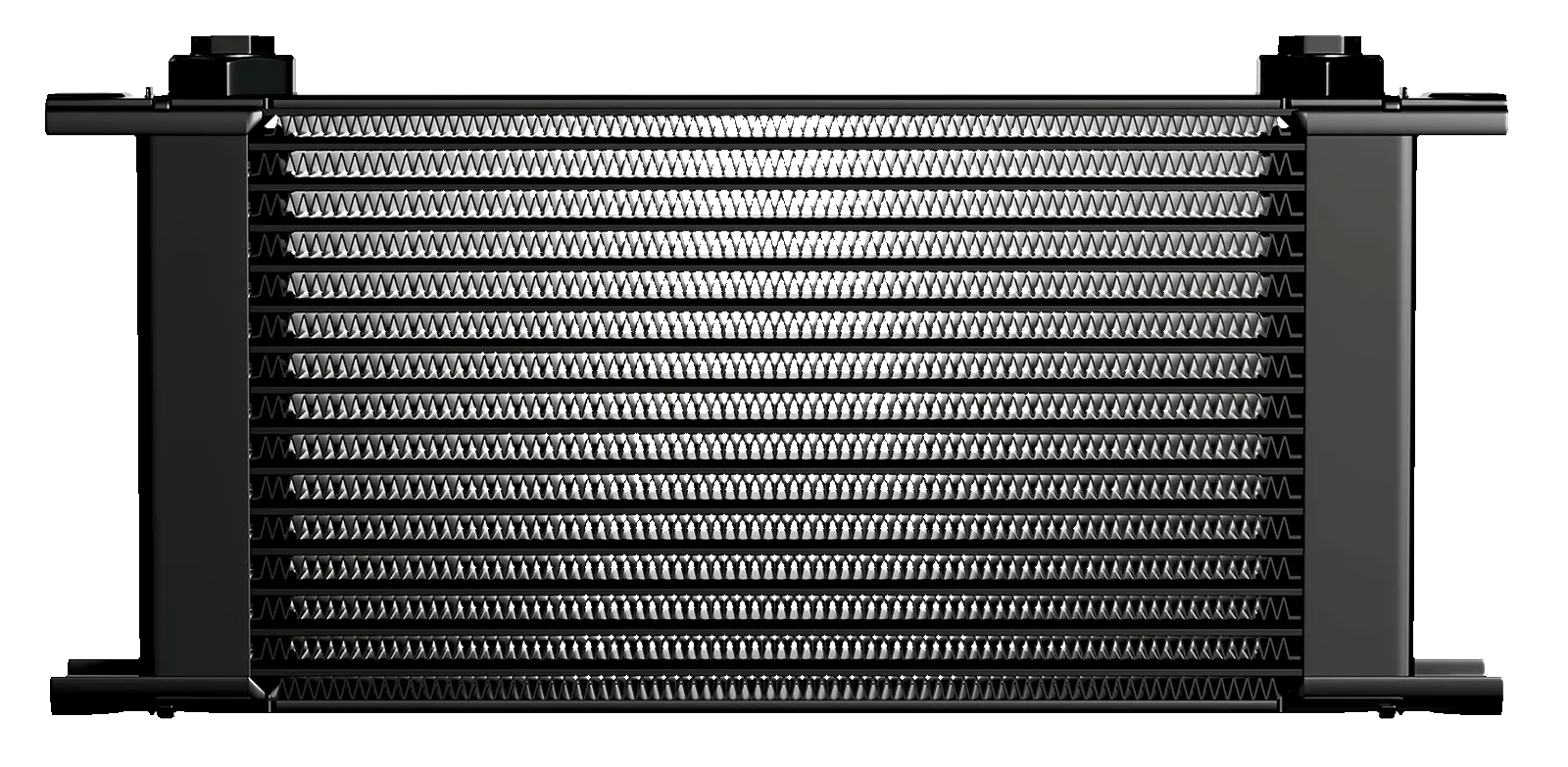

To compliment our extensive range of hose & fittings we offer a range of Setrab oil coolers.

Used by championship winning race teams world-wide, the track-proven, rugged construction of the Setrab cooler makes it the ideal cooling solution for motorsport and high-performance road use.

1. Width:
Available in three widths – Half, Full & Extra.
Width A (mm) B (mm) C (mm)
Half 210 163 130
Full 330 283 250
Extra 405 325 292

2. Height:

Rows E (mm)
7 52
10 75
13 99
16 123
19 146
25 194
34 236
40 310
50 388
*E measurement corresponds to diagram
3. Depth:
All Setrab ProLine STD coolers have a depth of 50mm.

Half Width
Part No Width Depth mm Rows Height mm Port size
50-107-7612 Half 50 7 52 M22 x 1.5
50-110-7612 Half 50 10 75 M22 x 1.5
50-113-7612 Half 50 13 99 M22 x 1.5
50-116-7612 Half 50 16 123 M22 x 1.5
50-119-7612 Half 50 19 146 M22 x 1.5
50-125-7612 Half 50 25 194 M22 x 1.5
50-150-7612 Half 5 50 388 M22 x 1.5

Full width
Part No Width Depth mm Rows Height mm Port size
50-607-7612 Full 50 7 52 M22 x 1.5
50-610-7612 Full 50 10 75 M22 x 1.5
50-613-7612 Full 50 13 99 M22 x 1.5
50-616-7612 Full 50 16 123 M22 x 1.5
50-619-7612 Full 50 19 146 M22 x 1.5
50-625-7612 Full 50 25 194 M22 x 1.5
50-634-7612 Full 50 34 236 M22 x 1.5
50-640-7612 Full 50 40 310 M22 x 1.5

Extra width
Part No Width Depth mm Rows Height mm Port size
50-910-7612 Extra 50 10 75 M22 x 1.5
50-913-7612 Extra 50 13 99 M22 x 1.5
50-915-7612 Extra 50 15 115 M22 x 1.5
50-919-7612 Extra 50 19 146 M22 x 1.5
50-925-7612 Extra 50 25 194 M22 x 1.5



Goodridge supplies the Setrab ProLine STD range; suitable for the following applications.

  • Engine oil
  • Transmission oil
  • Clutch fluid
  • Brake fluid
  • Differential oil
  • Power steering fluid

Which Goodridge hose and fittings ranges are compatible?

For further information and dimensions please see the Goodridge parts catalogue found at www.goodridge.com (Chapter 11).

To use AN JIC/UNF fittings you will need to purchase the following items also:

2x Adaptors - 22-094XX-01

2x O'rings - 25-233

A = Width
E = Rows




HISTORY, PURPOSE AND USAGE

For all our parts such as fittings, oil coolers, fuel hoses and other parts excluding brake or clutch line kits we offer a 12-month warranty. Brake and Clutch line kits come with a lifetime warranty or for the length of the time you own the vehicle.
