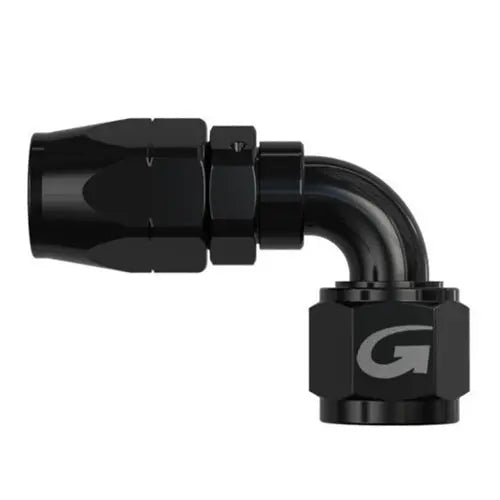

236-90 - 90° FEMALE SWIVEL FITTING - JIC/UNF
1136-9004
Goodridge 236 fittings are reusable fittings designed for use with our 200 series hose.
The triple seal/double O-ring nitrile, cutter design ensures a secure leak free connection, easily assembled using basic hand tools.
Our 1136 fittings use a single nipple design and are available in straight, 45° & 90° options for AN-04 only.
All 1136 and 236 fitting alignments can be adjusted in situ.
|
Fitting Type |
Reusable |
|
Fluid Specification |
Oil, Coolant & Water |
| Compatible hose |
200 |
|
Part No. |
To suit hose |
JIC/UNF |
|
1136-9004/BK |
200-04 |
7/16 x 20 |
|
236-9006/BK |
200-06 |
9/16 x 18 |
|
236-9008/BK |
200-08 |
3/4 x 16 |
|
236-9010/BK |
200-10 |
7/8 x 14 |
|
236-9012/BK |
200-12 |
1 1/16 x 12 |
|
236-9016/BK |
200-16 |
1 5/16 x 12 |
HISTORY, PURPOSE AND USAGE
For all our parts such as fittings, oil coolers, fuel hoses and other parts excluding brake or clutch line kits we offer a 12-month warranty. Brake and Clutch line kits come with a lifetime warranty or for the length of the time you own the vehicle.
