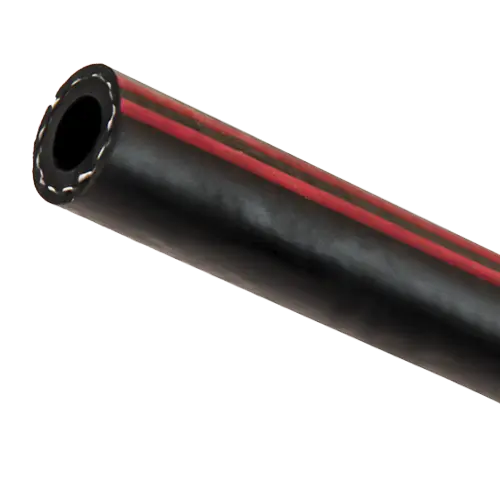

Image for illustrative purposes only
TF-TU25 HOSE (COTTON REINFORCED)
PRODUCT CODE:
The TFTU25 series is a cotton reinforced rubber hose with a black synthetic rubber outer and oil resisting seamless rubber compound inner. Ideal for low pressure applications where the external abrasive protection of the 200 series hose is not required.
|
Fluid applications: |
Petroleum Fuel, Oil, Coolant and Hydraulic fluids. |
|
Compatible fittings: |
536 fittings & 936 hose finishers |
|
Notes: |
SAE 100 R6 compliant. |
|
Part No. |
Max bore size |
O.D. |
Working Press |
Burst Press |
Weight |
Min Ben Rad |
|
|
mm (in) |
mm (in) |
bar (psi) |
bar (psi) |
Kgm/LbFt |
mm (in) |
|
TF-TU25-04 |
6,0 (0,236) |
14,0 (0.551) |
25 |
78 (1131) |
0,15 Kg/m (0.100) |
40 (1.575) |
|
TF-TU25-06 |
10,0 (0.393) |
18,0 (0.709) |
25 |
78 (1131) |
0,25 Kg/m (0.170) |
60 (2.362) |
|
TF-TU25-08 |
13,0 (0.512) |
21,0 (0.827) |
25 |
78 (1131) |
0,30 Kg/m (0.202) |
80 (3.150) |
|
TF-TU25-10 |
16,0 (0.630) |
25,0 (0.984) |
25 |
78 (1131) |
0,40 Kg/m (0.269) |
100 (394) |
Temp Range: deg C -40/+80 / deg F -40/+176
