GOODRIDGE 910 G LINE XF ARAMID HOSE
PRODUCT CODE:

Zinc Plated - Zinc plated provides a great value option for every application

Stainless Steel - High grade stainless steel is guaranteed corrosion resistant

£47.89 ex. vat
Description

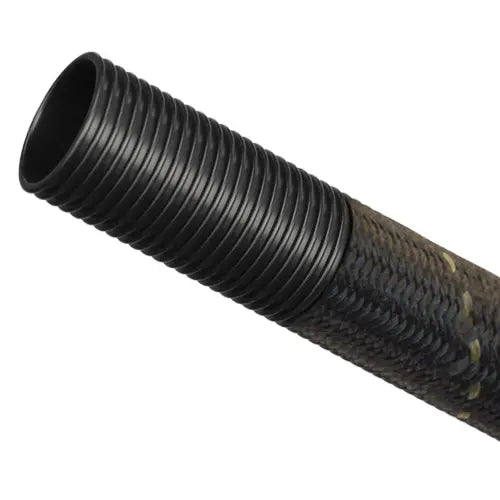

The G-Line XF 910 is the lightest smoothbore hose in the Goodridge range. The hose features a smooth bore, externally convoluted, carbon impregnated, anti-static PTFE liner, wrapped in a super lightweight Aramid fibre braid. In addition to the 711 crimp and 4000 series crimp/draw swage fittings, the G-Line XF 910 hose can be assembled using 811 reusable fittings, without the need for specialist tooling.

Fuel applications

Fuel, Oil, Water, Methanol & Pneumatics

Compatible fittings

711 crimp fittings, 4000 crimp fittings, 811 reusable fittings

Part No.

Max bore size

O.D.

Working Press

Burst Press

Weight

Min Ben Rad



mm
(in)

mm
(in)

bar
(psi)

bar (psi)

Kgm/LbFt

mm
(in)

910-04

6,70 (0,26)

9,70 (0,38)

88
(1276)

350 (5076)

0,070 (0,0471)

20 (0,79)

910-06

9,50 (0,37)

13,00 (0,51)

80
(1160)

320 (4641)

0,105 (0,0706)

28 (1,10)

910-08

12,70 (0,50)

16,80 (0,66)

70
(1015)

280 (4061)

0,140 (0,0942)

40 (1,57)

910-10

15,90 (0,63)

20,90 (0,11)

65
(924)

260 (3770)

0,205 (0,1379)

45 (1,77)

910-12

19,00 (0,75)

24,70 (0,97)

60
(870)

240 (3480)

0,214 (0,1440)

55 (2,16)

910-16

25,40 (1,00)

32,70 (1,29)

50
(725)

200 (2900)

0,489 (0,3290)

75 (2,95)

910-20

31,70 (1,24)

38,60 (1,45)

45
(652)

180 (2610)

0,587 (0,3950)

100 (3,94)

Temp Range : deg C -40/+180 / deg F -40/+356
Please Note: Priced per metre.
