GOODRIDGE 600 SERIES PTFE STAINLESS BRAID HOSE
PRODUCT CODE:

Available Options

Zinc Plated - Zinc plated provides a great value option for every application

Stainless Steel - High grade stainless steel is guaranteed corrosion resistant

£16.13 ex. vat
Description

The 600 series hose range is a PTFE lined hose, wrapped in a Stainless-Steel braid; designed for brake and clutch applications.

600
(AN-04, AN-06 & AN-08 600 series hoses and fittings are available in Medium Pressure and High Pressure variants.)
The PTFE liner is braided with Stainless Steel, to provide consistent brake and clutch pedal/lever feel, eliminating any sponginess that may be found with the equivalent rubber hose. There is an option for the Stainless-Steel braid to be wrapped in an abrasive resistant covering that can be wiped clean.
Compatible with reusable and crimp fittings. (Specialist equipment required).

Fluid applications

Brake, Clutch & Hydraulics

Compatible fittings

Crimp / Reusable

Notes

600 series

Part No.

Max
bore
size

Cover
O.D.

Working
Press

Burst
Press

Weight

Min
Ben
Rad



mm
(in)

mm
(in)

bar
(psi)

bar
(psi)

Kgm/LbFt

mm
(in)

*600-02

2,03
(0,080)

-

450
(6525)

1350
(19580)

0,045
(0,03)

13
(0,51)

*600-03

3,5
(0,138)

-

290
(4205)

870
(12618)

0,06
(0,04)

38
(1,50)

600-03BK

3,5
(0,138)

7,3
(0,287)

290
(4205)

870
(12618)

0,088
(0,0592)

38
(1,50)

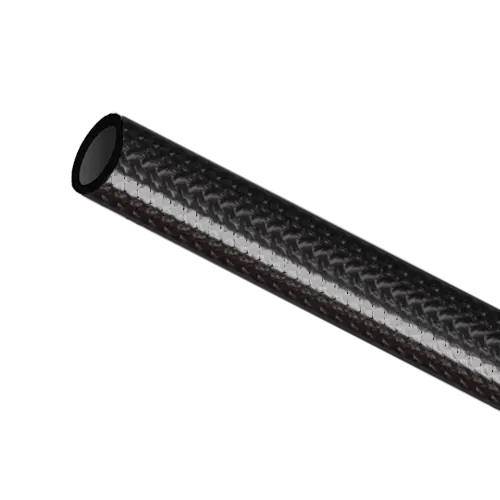

600-03CB

3,5
(0,138)

7,3
(0,287)

290
(4205)

870
(12618)

0,088
(0,0592)

38
(1,50)

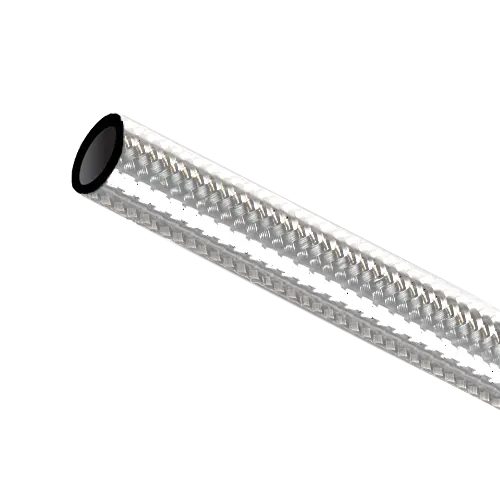

600-03CL

3,5
(0,138)

7,3
(0,287)

290
(4205)

870
(12618)

0,088
(0,0592)

38
(1,50)

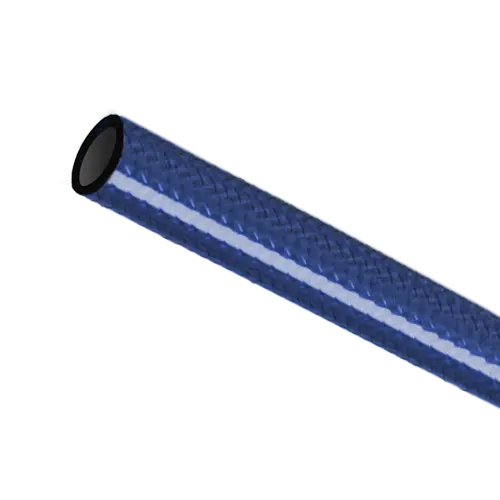

600-03EB

3,5
(0,138)

7,3
(0,287)

290
(4205)

870
(12618)

0,088
(0,0592)

38
(1,50)

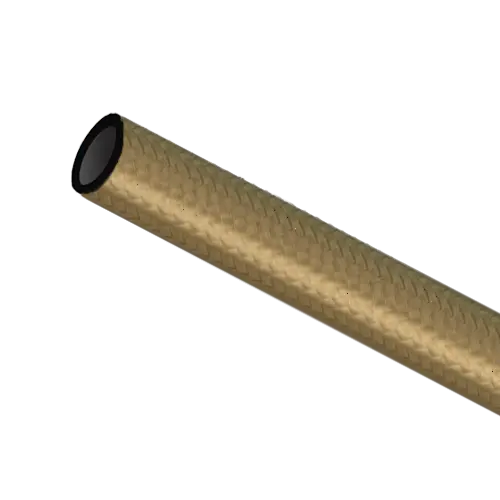

600-03GD

3,5
(0,138)

7,3
(0,287)

290
(4205)

870
(12618)

0,088
(0,0592)

38
(1,50)

600-03LG

3,5
(0,138)

7,3
(0,287)

290
(4205)

870
(12618)

0,088
(0,0592)

38
(1,50)

600-03OR

3,5
(0,138)

7,3
(0,287)

290
(4205)

870
(12618)

0,088
(0,0592)

38
(1,50)

600-03PK

3,5
(0,138)

7,3
(0,287)

290
(4205)

870
(12618)

0,088
(0,0592)

38
(1,50)

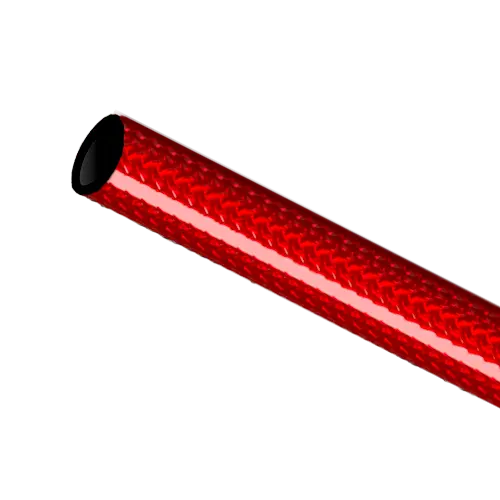

600-03RD

3,5
(0,138)

7,3

(0,287)

290
(4205)

870
(12618)

0,088
(0,0592)

38
(1,50)

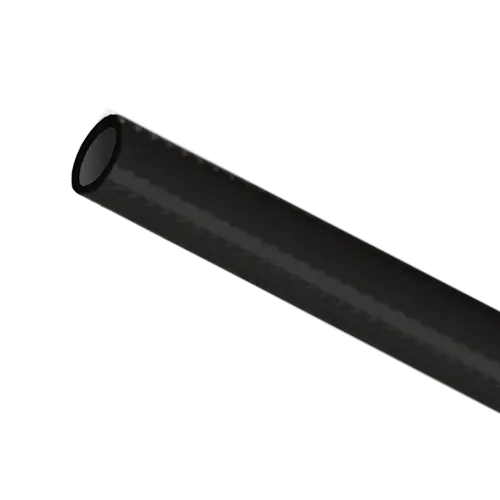

600-03VB

3,5
(0,138)

7,3
(0,287)

290
(4205)

870
(12618)

0,088
(0,0592)

38
(1,50)

600-03WT

3,5
(0,138)

7,3
(0,287)

290
(4205)

870
(12618)

0,088
(0,0592)

38
(1,50)

600-03YE

3,5
(0,138)

7,3
(0,287)

290
(4205)

870
(12618)

0,088
(0,0592)

38
(1,50)

Temp Range : 600-02 uncovered : deg C -70/+260 / deg F -94/+500
600-03 uncovered: deg C -70/+260 / deg F -94/+500
600-03 covered: deg C -10/+60 / deg F +14/+140
Please Note: Priced per metre.

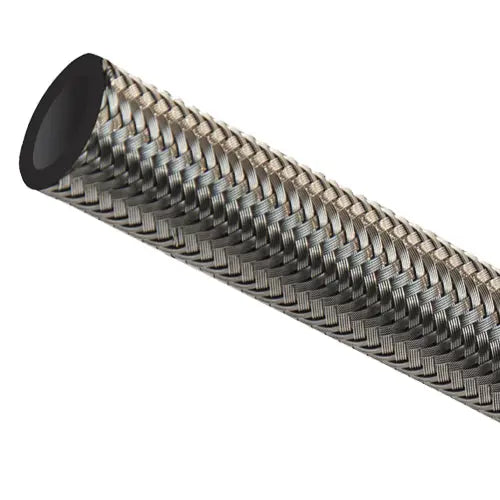

600HP
The 600HP (High Pressure) series features a smooth bore PTFE liner, wrapped in tightly woven aramid fibre and outer 304 grade Stainless Steel braid. The Stainless steel braid offers abrasion, corrosion and fire resistance, which also provides heat protection up to 260°C.
Compatible with HP crimp fittings only. (Specialist equipment required).

Fluid applications

Power steering, Gear shift, Active aero & High pressure hydraulics.

Construction

Corrosion and fire resistant Stainless steel braid with Aramid fibre under braid and PTFE liner.

Compatible fittings

600HP Crimp = AN-04HP, AN-06HP & AN-08HP

Notes

Anti static

Part No.

Max bore size

O.D.

Working Press

Burst Press

Weight

Min Ben Rad



mm (in)

mm (in)

bar (psi)

bar (psi)

Kgm/LbFt

mm (in)

600-04HP

5,1 (0,201)

8,9 (0,350)

375
(6889)

1500 (21755)

0,119 (0,080)

45 (1,772)

600-06HP

8,2 (0,323)

12,3 (0,484)

325
(4713)

1300 (18854)

0,164 (0,110)

70 (0,276)

600-08HP

10,6 (0,417)

14,8 (0,583)

250
(3625)

1000 (14503)

0,193 (0,130)

90 (3,543)

Temp Range : deg C -70/+260 / deg F -94/+500
Please Note: Priced per metre.
