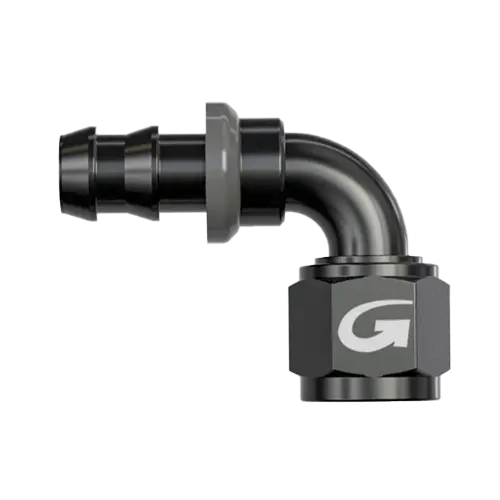

536-90 - 90° FEMALE CONCAVE SEAT - JIC/UNF

OUR PRICE EX VAT £30.63
£36.76 (INC VAT)
536-9004

To order a kit with alterations or non-standard applications Please Click Here

Goodridge 536 series fittings are designed for use with our 536 and 536B hose range.

Goodridge developed the ‘sure lock’ barbed tails specifically for use with the 536 hose range to ensure a simple, safe and reliable connection.

In addition, 536 hose can be turned on the barbed fitting tail for alignment in situ.

Fluid applications:

Oil, Coolant, Air and Water.

Compatible hose:

536 and 536B

Material:

D = Aluminium (Blue) DBK = Aluminium (Black)

Notes:

Once the hose is fitted it must be cut for the fitting to be removed.

Part No

To suit hose

JIC/UNF

536-9004

536-04

7/16" x 20

536-9006

536-06

9/16" x 18

536-9008

536-08

3/4" x 16

536-9010

536-10

7/8" x 14

536-9012

536-12

1 1/16" x 12
