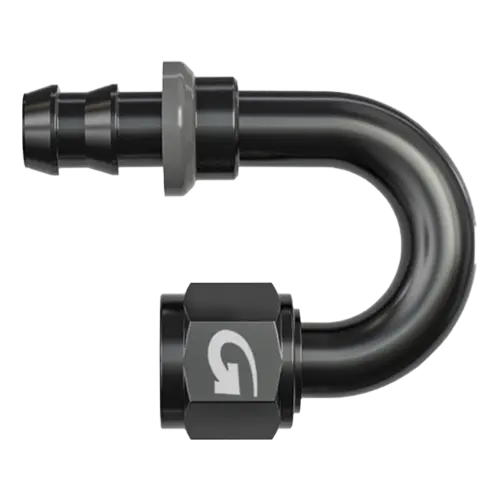

536 SERIES PUSH FIT 180 DEGREE CONNECTOR
PRODUCT CODE:

Available Options

Colour
BLUE
BLACK

Zinc Plated - Zinc plated provides a great value option for every application

Stainless Steel - High grade stainless steel is guaranteed corrosion resistant

£40.30 ex. vat
Description

The 536 series fittings are designed for use with the 536 and 536B hose ranges.

Goodridge developed the ‘sure lock’ barbed tails specifically for use with the 536 hose range to ensure a simple, safe and reliable connection. In addition, the 536 hose can be turned on the barbed fitting tail for alignment in situ.

Fluid applications:

Oil, Coolant, Air and Water.

Compatible hose:

536 and 536B

Material:

D = Aluminium (Blue) DBK = Aluminium (Black)

Notes:

Once the hose is fitted it must be cut for the fitting to be removed.

Part No

To suit hose

JIC/UNF

536-18004

536-04

7/16" x 20

536-18006

536-06

9/16" x 18

536-18008

536-08

3/4" x 16

536-18010

536-10

7/8" x 14

536-18012

536-12

1 1/16" x 12
