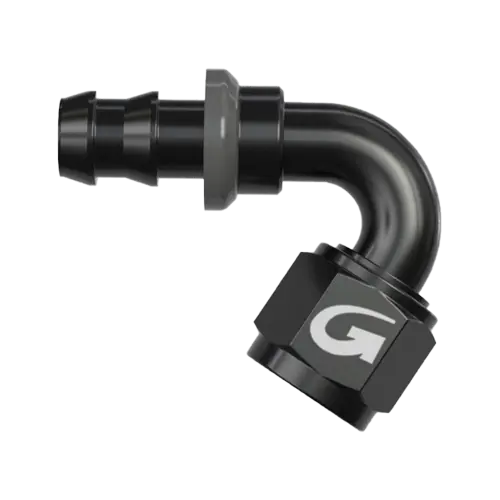

Image for illustrative purposes only
536 SERIES PUSH FIT 120 DEGREE CONNECTOR
PRODUCT CODE:
Available Options
Description
The 536 series fittings are designed for use with the 536 and 536B hose ranges.
Goodridge developed the ‘sure lock’ barbed tails specifically for use with the 536 hose range to ensure a simple, safe and reliable connection. In addition, the 536 hose can be turned on the barbed fitting tail for alignment in situ.
Fluid applications: |
Oil, Coolant, Air and Water. |
Compatible hose: |
536 and 536B |
Material: |
D = Aluminium (Blue) DBK = Aluminium (Black) |
Notes: |
Once the hose is fitted it must be cut for the fitting to be removed. |
Part No. |
To suit hose |
JIC/UNF |
536-12004 |
536-04 |
7/16" x 20 |
536-12006 |
536-06 |
9/16" x 18 |
536-12008 |
536-08 |
3/4" x 16 |
536-12010 |
536-10 |
7/8" x 14 |
536-12012 |
536-12 |
1 1/16" x 12 |
