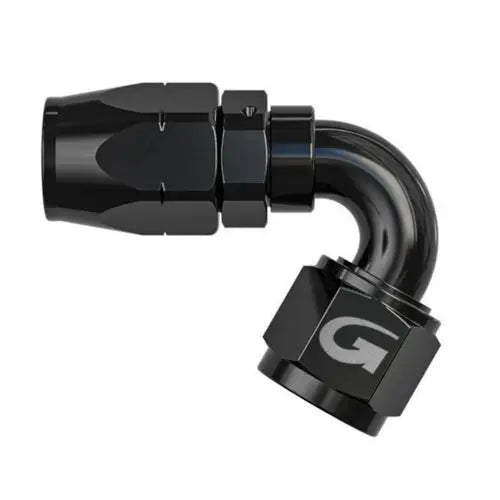

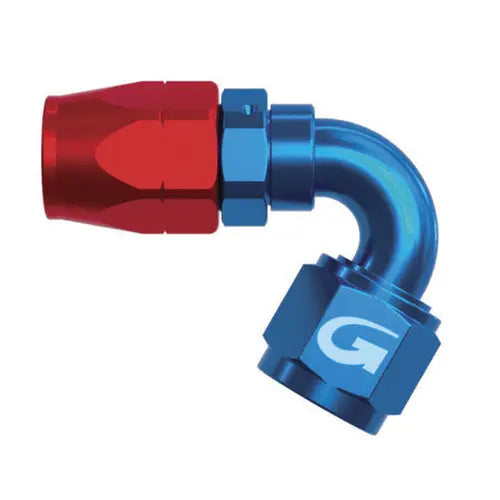

Image for illustrative purposes only
200 Series 120° Cutter Fitting
PRODUCT CODE:
Description
The 236 fittings are reusable fittings designed for use with the 200 & 210 series hose ranges. The triple seal/double O-ring nitrile, cutter design ensures a secure leak freemconnection, easily assembled using basic hand tools.
The 1136 fittings use a single nipple design, available in straight, 450 & 900 options; AN-04 only.
The 1136 and 236 fitting alignments can be adjusted in situ.
|
Fitting Type |
Reusable |
|
Fluid Specification |
Fuel, Oil, Coolant, Water, Methanol |
|
Compatible hose |
200, 210 |
|
Part No. |
To suit hose |
JIC/UNF |
|
236-12006 |
200-06 |
9/16 x 18 |
|
236-12008 |
200-08 |
3/4 x 16 |
|
236-12010 |
200-10 |
7/8 x 14 |
|
236-12012 |
200-12 |
1 1/16 x 12 |
|
236-12016 |
200-16 |
1 5/16 x 12 |
